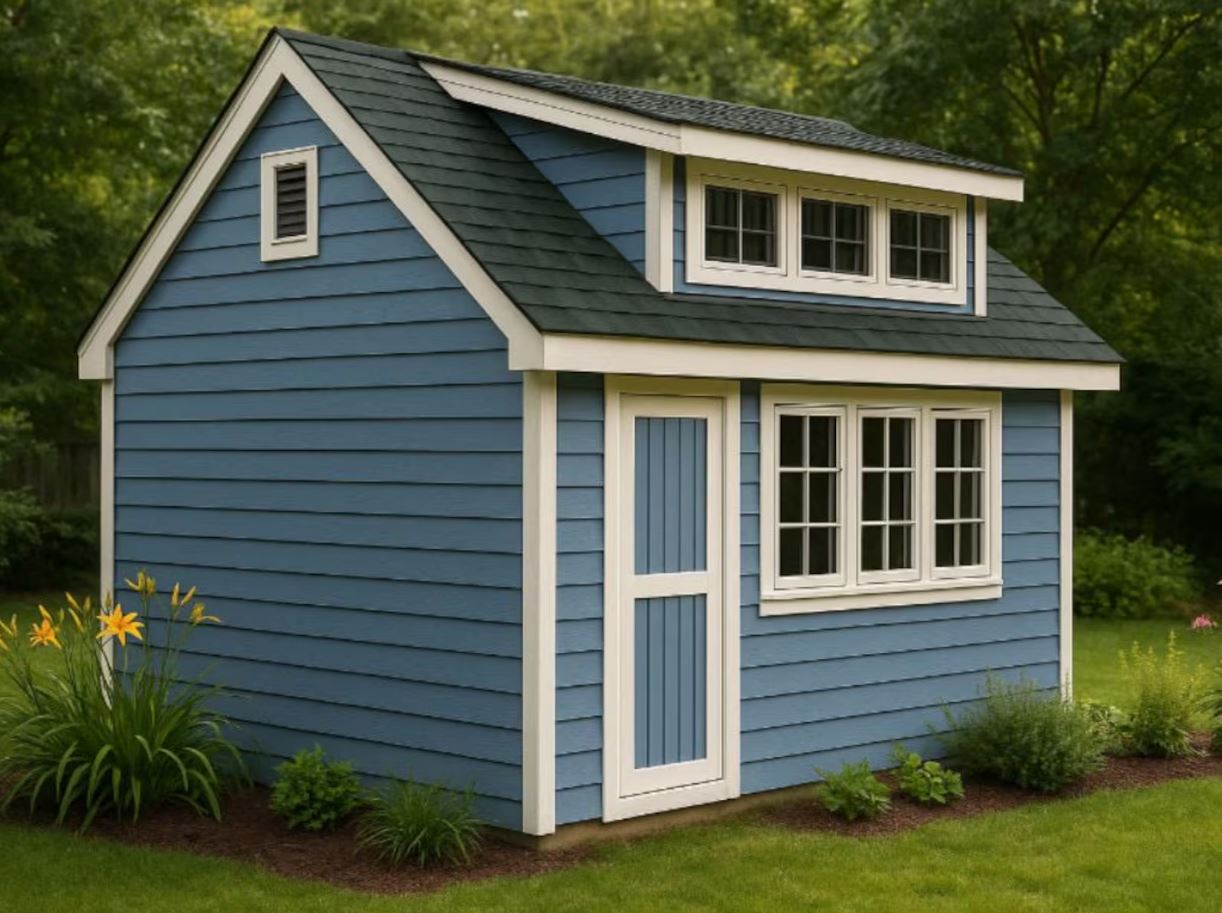

12x16 Garden Shed Plans with Loft (PDF)

12x16 Dormer Shed Plans (PDF Download)

Build a strong, stylish shed with professional-grade plans!

What Makes These Plans Stand Out:

🔨 Multiple Foundation Options
Includes instructions for 5 types: wood skid, concrete slab, block pier, poured pier, and precast pier.

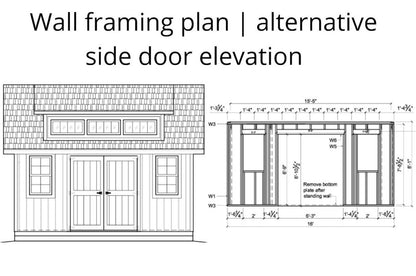

🧱 Durable Framing

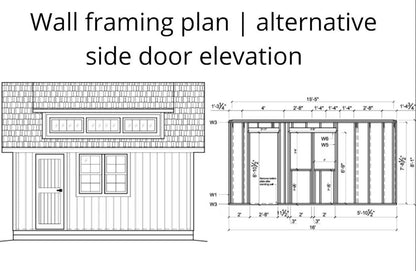

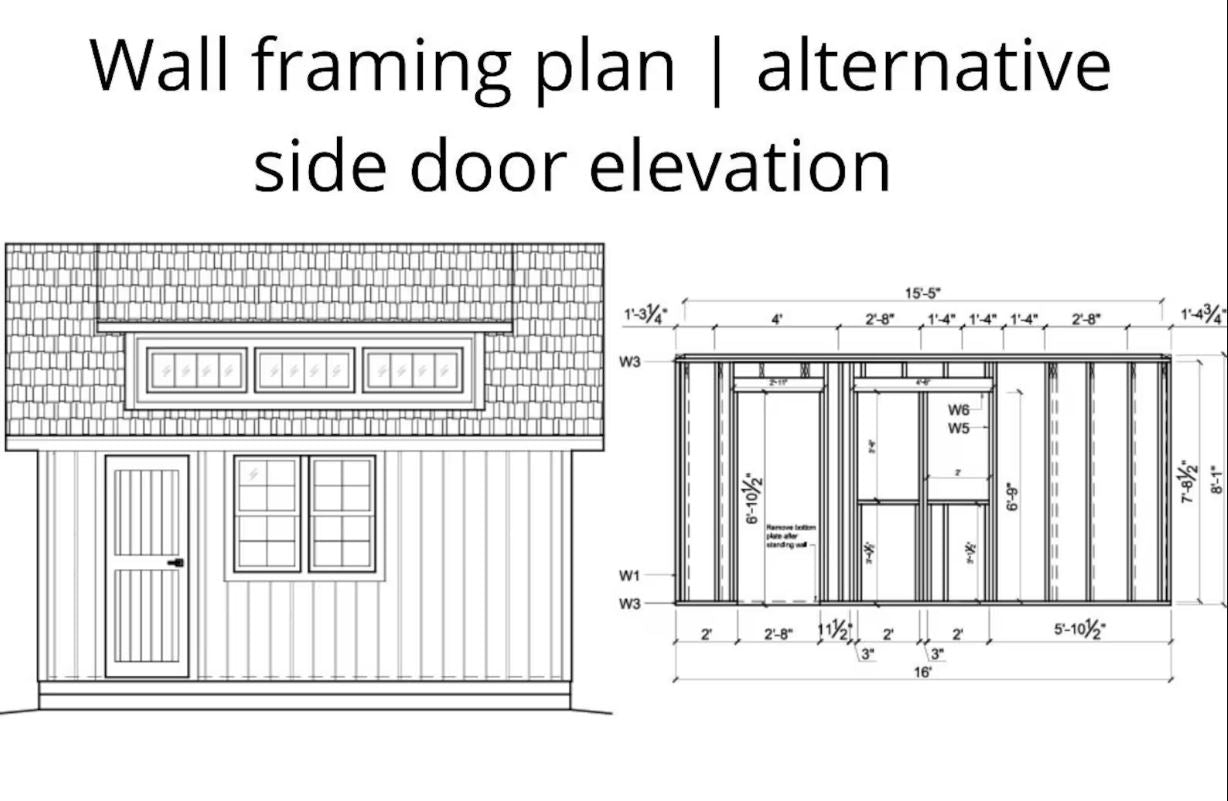

Walls built like a real home: 2x4 studs 16” OC, double top plate, and 8’-1” high walls.

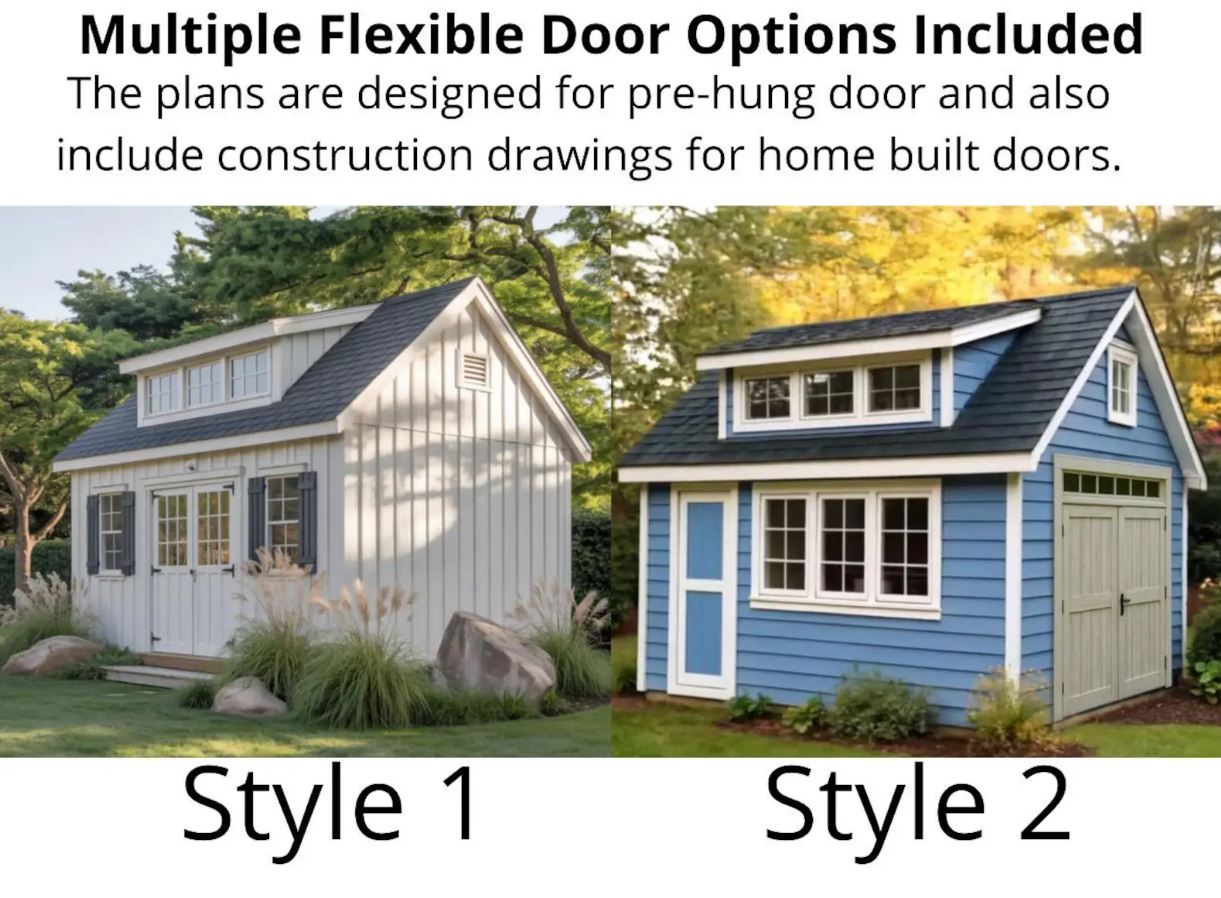

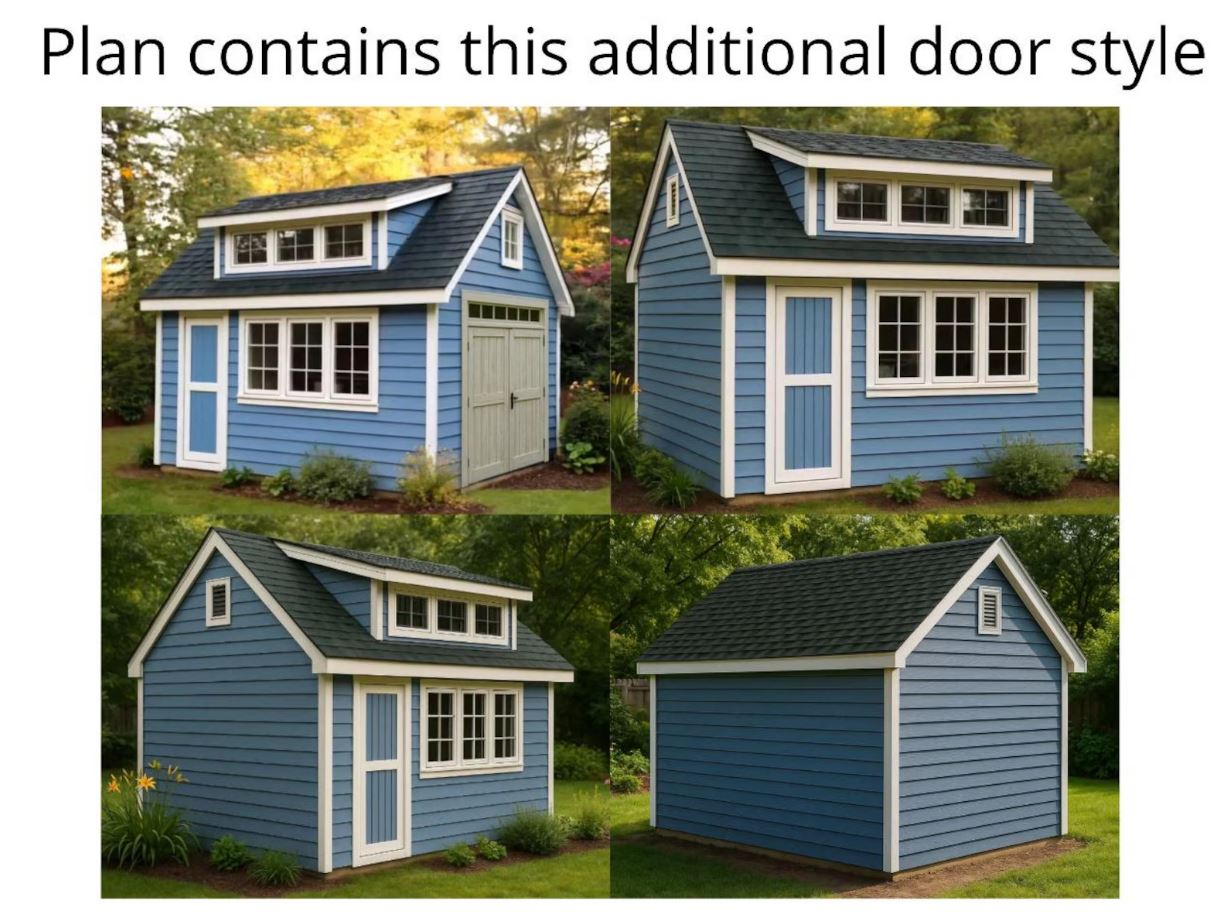

🚪 Two Door Options

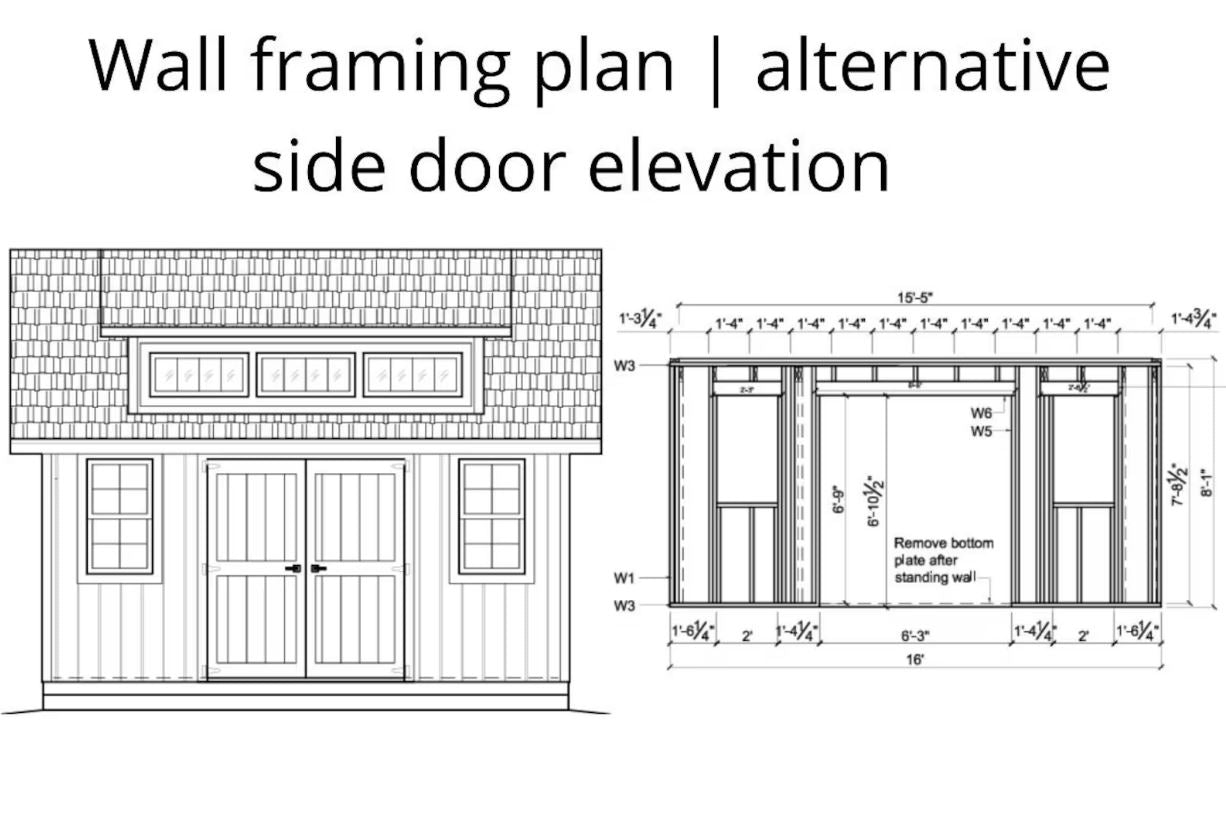

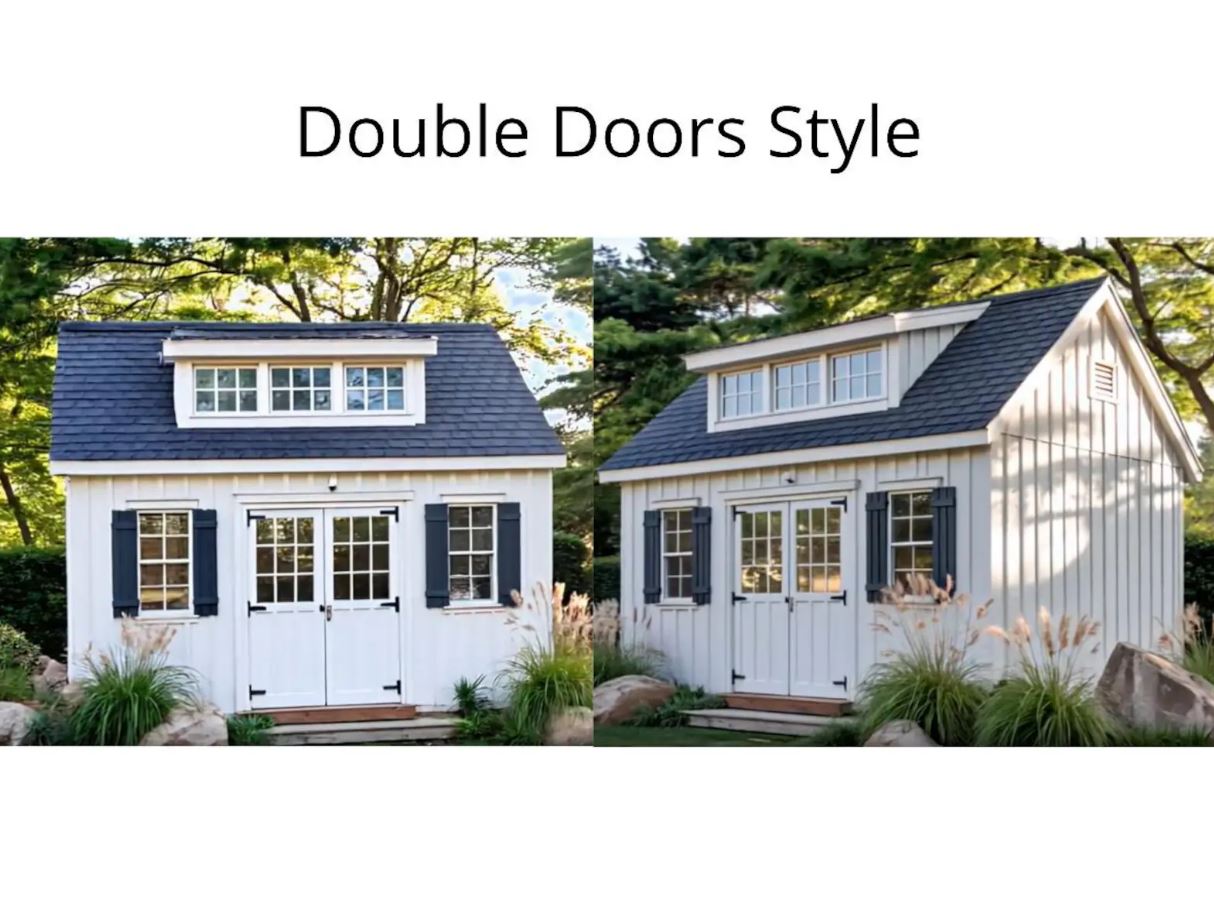

• Double End Door: 6’x6’-8”
• Side Door: 2’-6”x6’-8”

🏠 Adaptable Exterior
Designed for T-111 siding, but works with vinyl or others.

🏗 Strong Roof Design
• Main pitch: 10/12, Dormer: 4/12
• 2x6 rafters with ridge board and ½” OSB sheathing
• Pre-cut angles for easy assembly

✅ Smart Details
• 10” roof overhangs for better protection
• Trim instructions for clean finish
• Floor load: 50 psf | Roof snow load: 40 psf

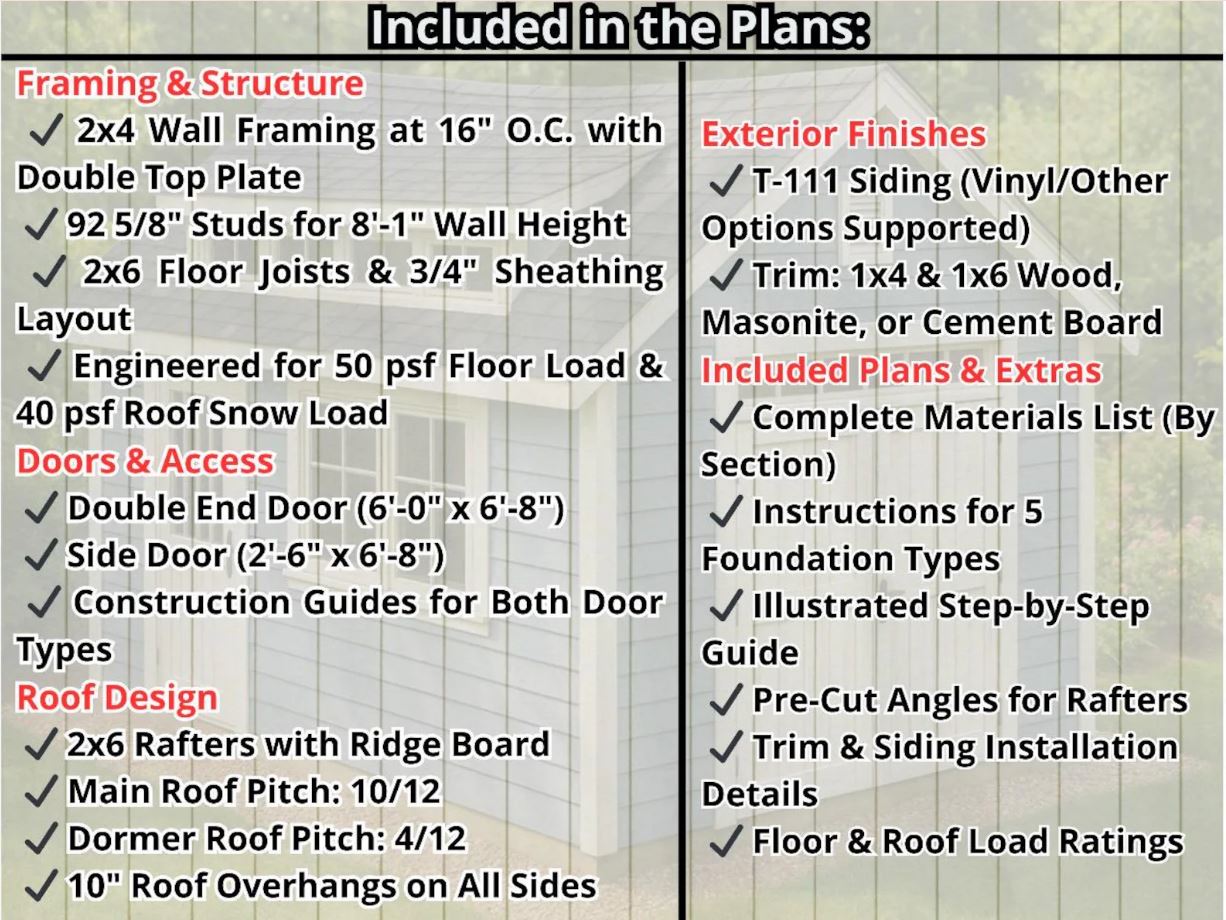

What’s Included:
✔ Full materials list

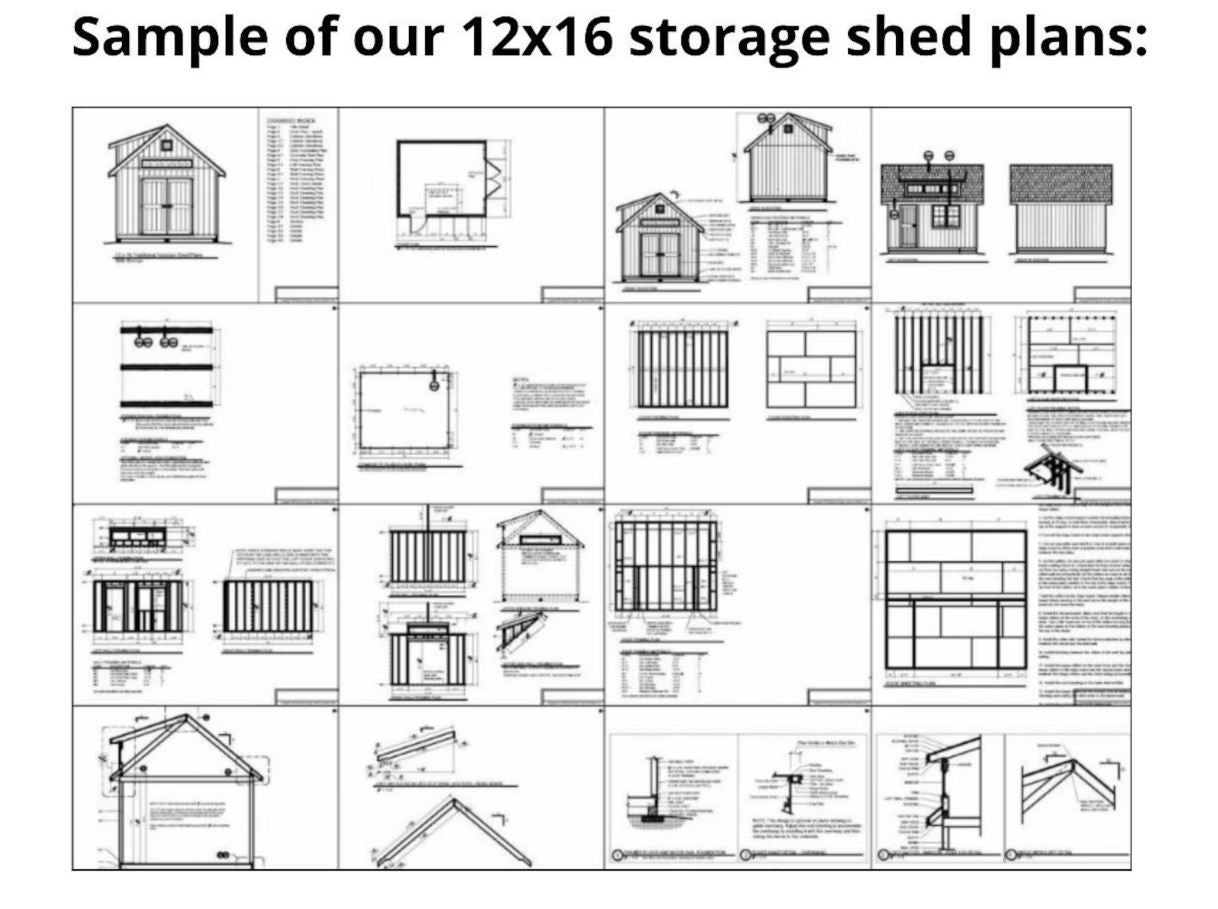

✔ Step-by-step illustrated instructions
✔ Guides for doors, framing, roofing & siding
✔ Load specs & trim details

Instant Download:
After purchase, go to Your Account > Purchases to download.

Build with confidence—designed for real-world strength and lasting beauty!
