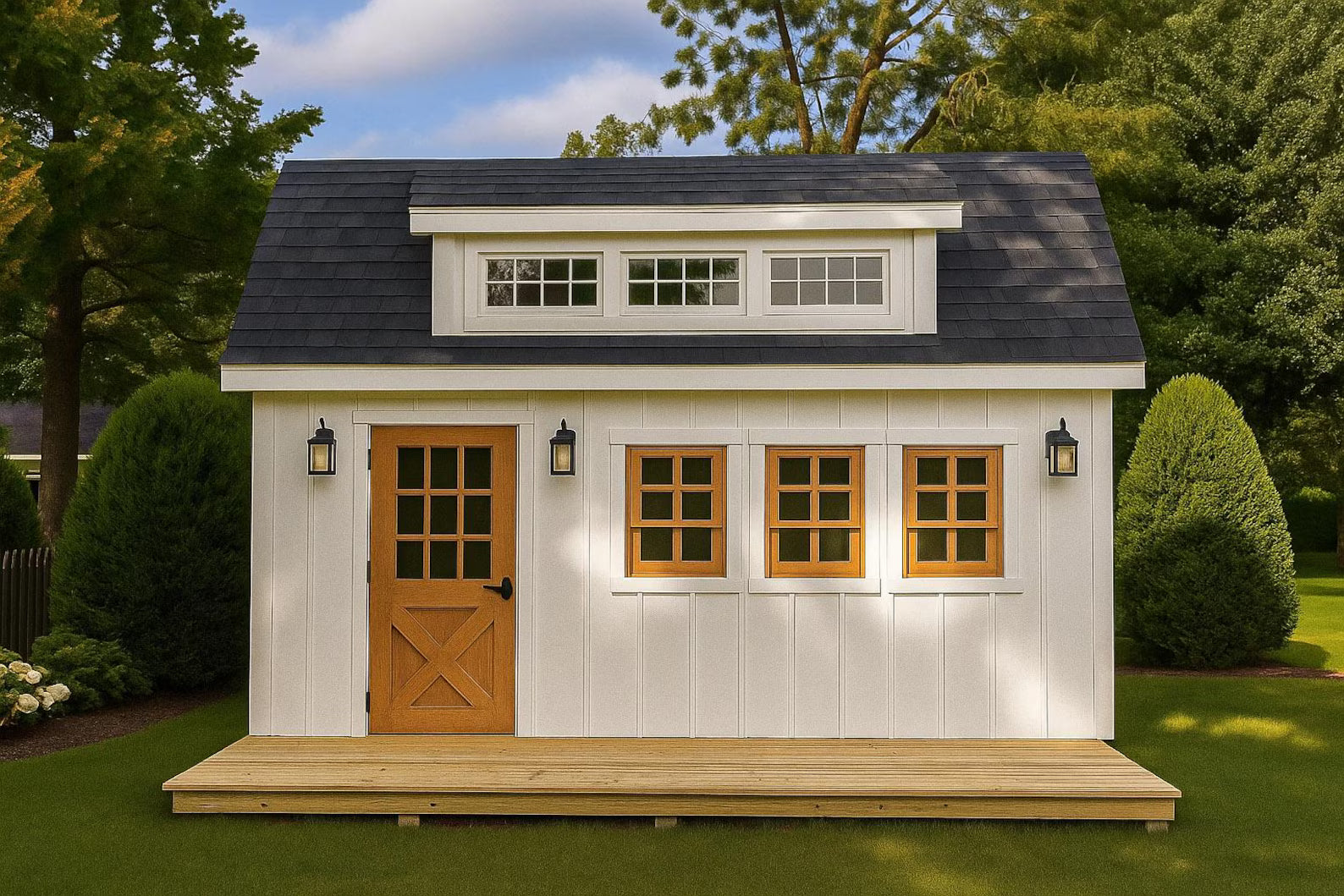

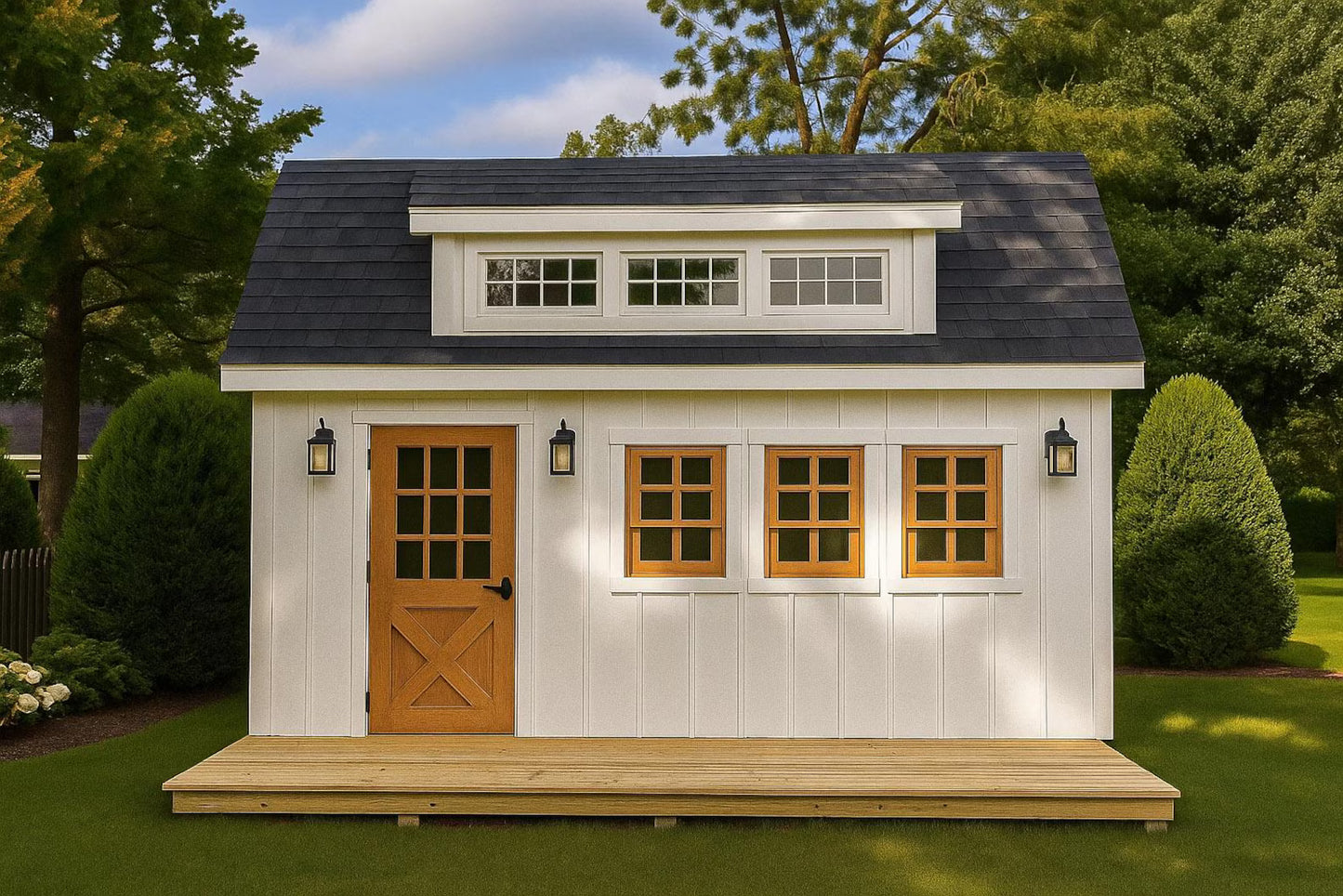

🏠 12x16 Shed Plans With Loft (Instant PDF Download) - 192 sq ft Shed Building Plans - Shed Patterns
Build a strong, stylish, and versatile storage shed with our easy-to-follow professional plans — perfect for DIYers and pros alike!

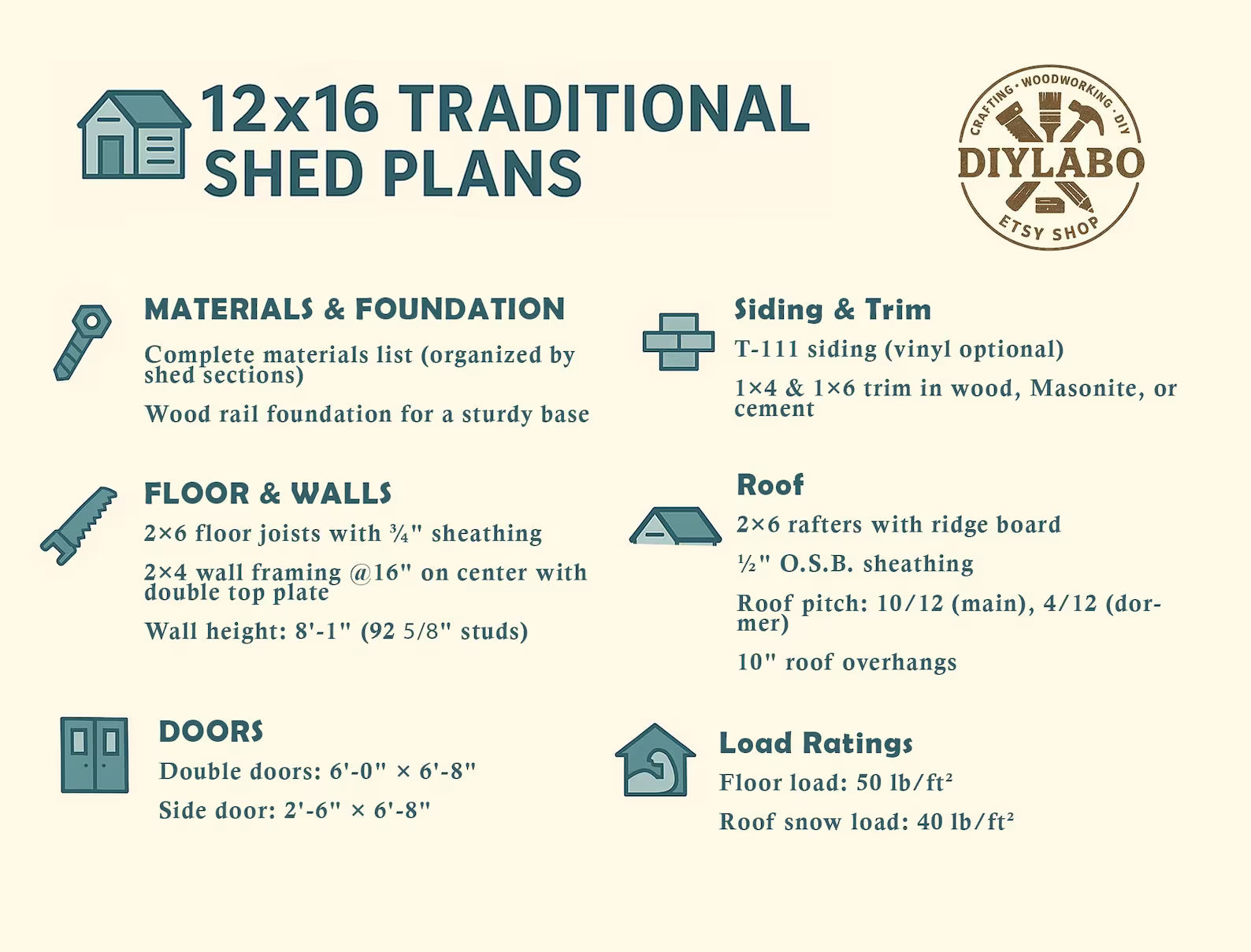

🔨 Key Features:
Multiple Foundation Options Choose the best fit for your property! Includes detailed instructions for 5 foundation types: Wood Skid, Concrete Slab, Block Pier, Poured Pier, and Precast Pier.

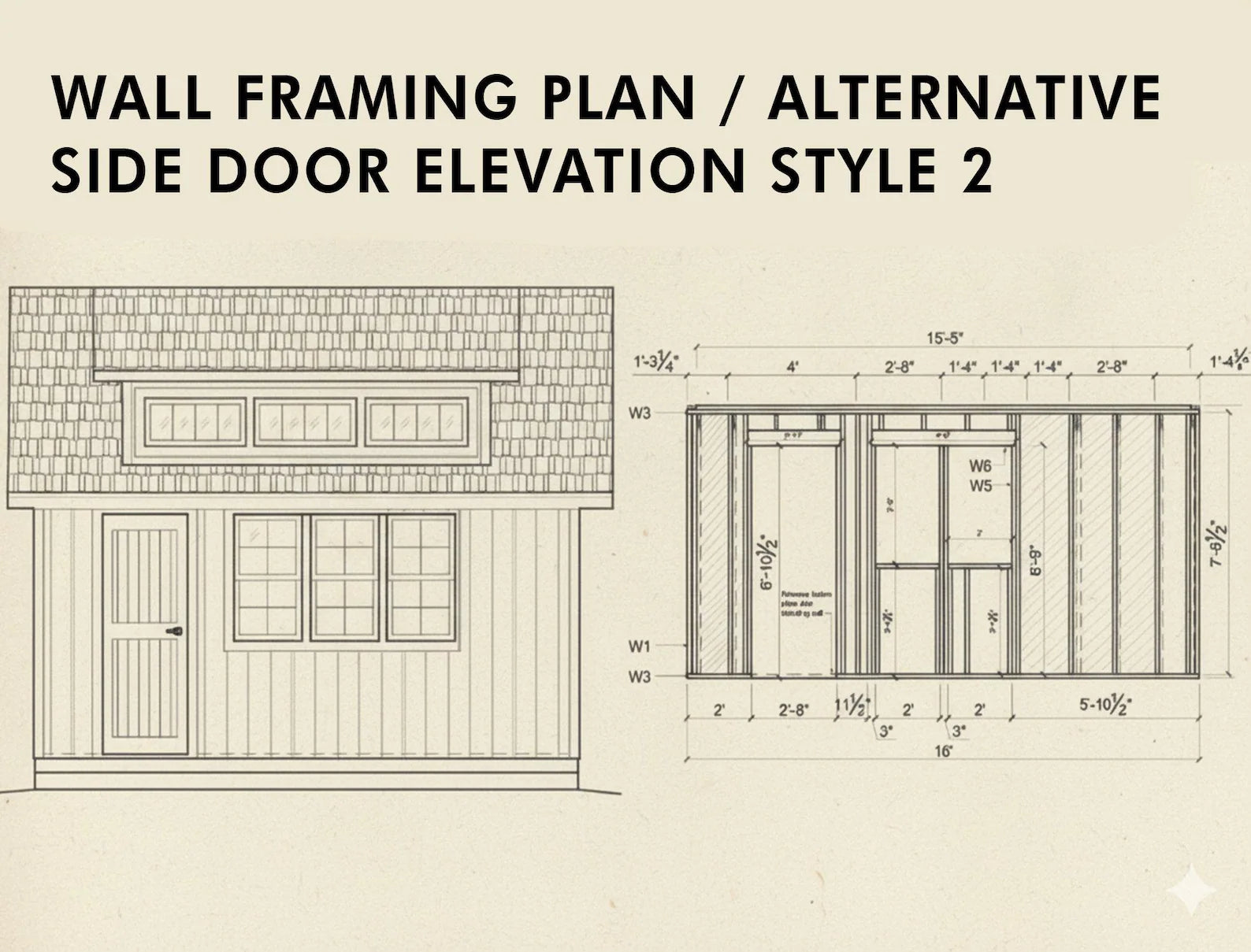

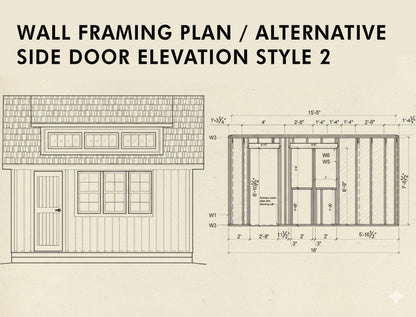

Home-Grade Framing Built to last — walls are framed like a real house with: • 2x4 studs 16” OC • Double top plate • 8’-1” wall height for spacious storage

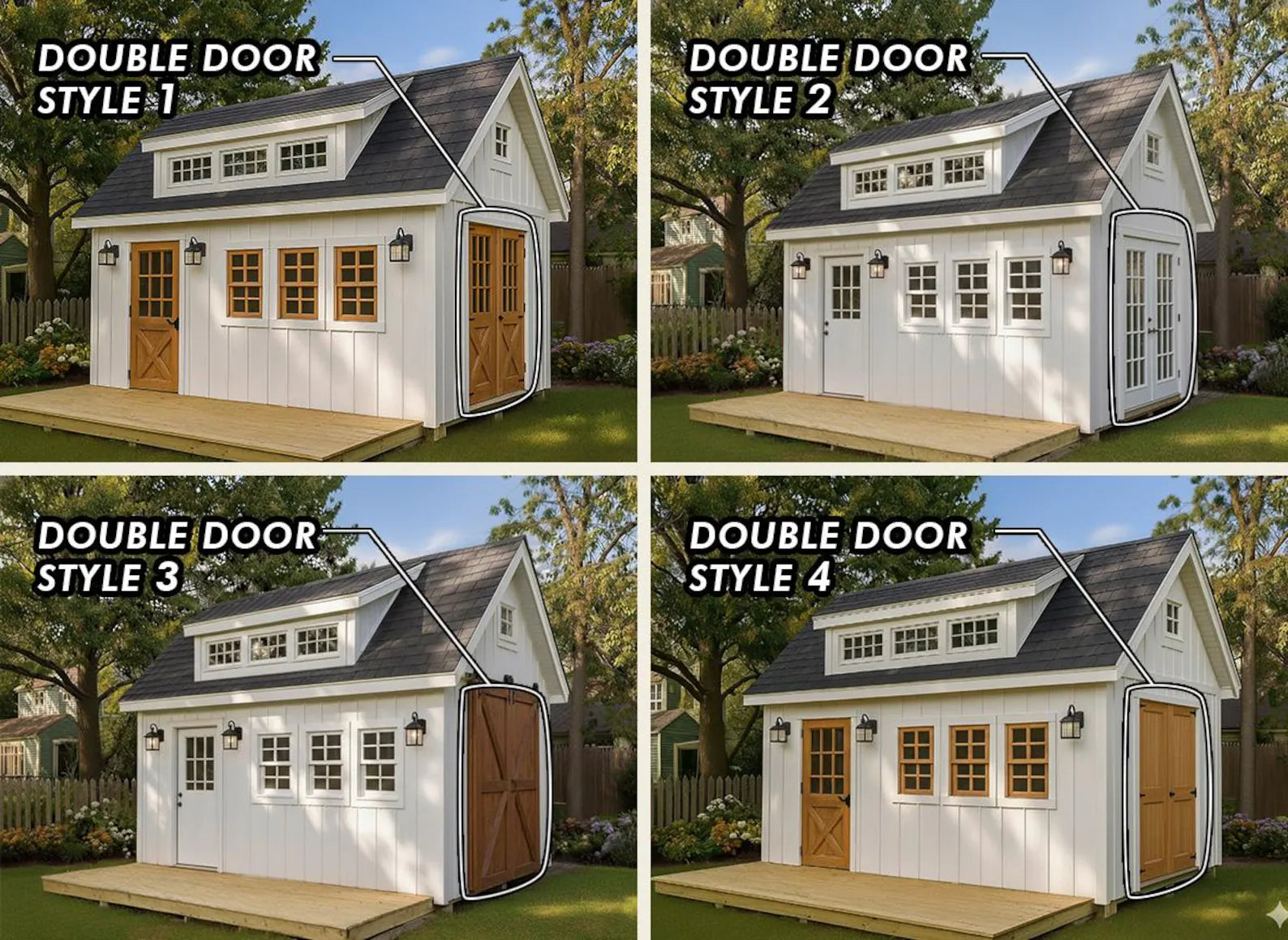

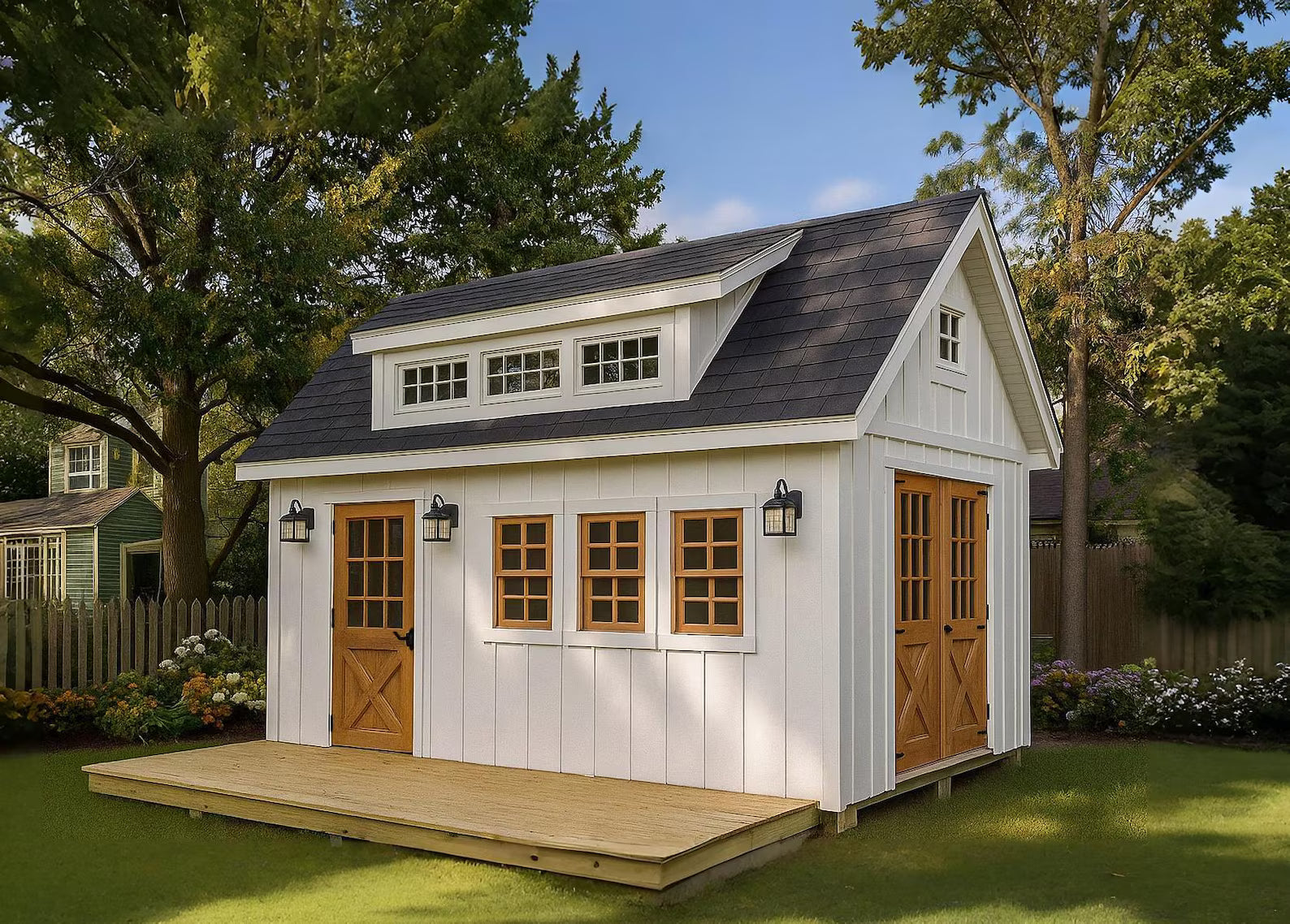

Two Functional Door Styles • Double End Door: 6’x6’-8” – ideal for large equipment • Side Entry Door: 2’-6”x6’-8” – convenient everyday access
Adaptable Exterior Finish Designed for T1-11 siding, but fully compatible with vinyl, lap, or other materials to match your home’s look.

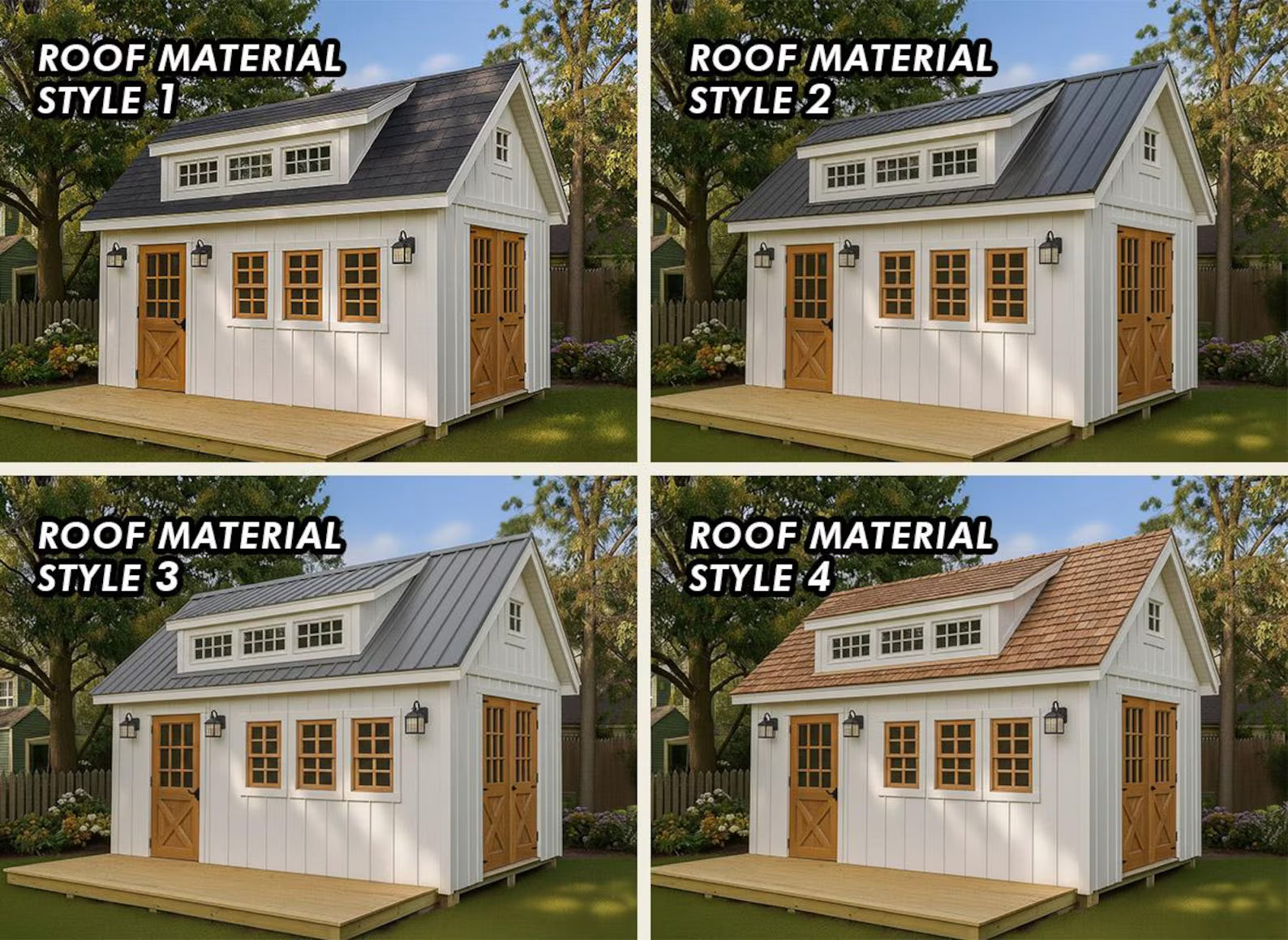

Strong Roof Design • Main pitch: 10/12 | Dormer pitch: 4/12 • 2x6 rafters with ridge board & ½” OSB sheathing • Pre-cut angles for simple, accurate assembly

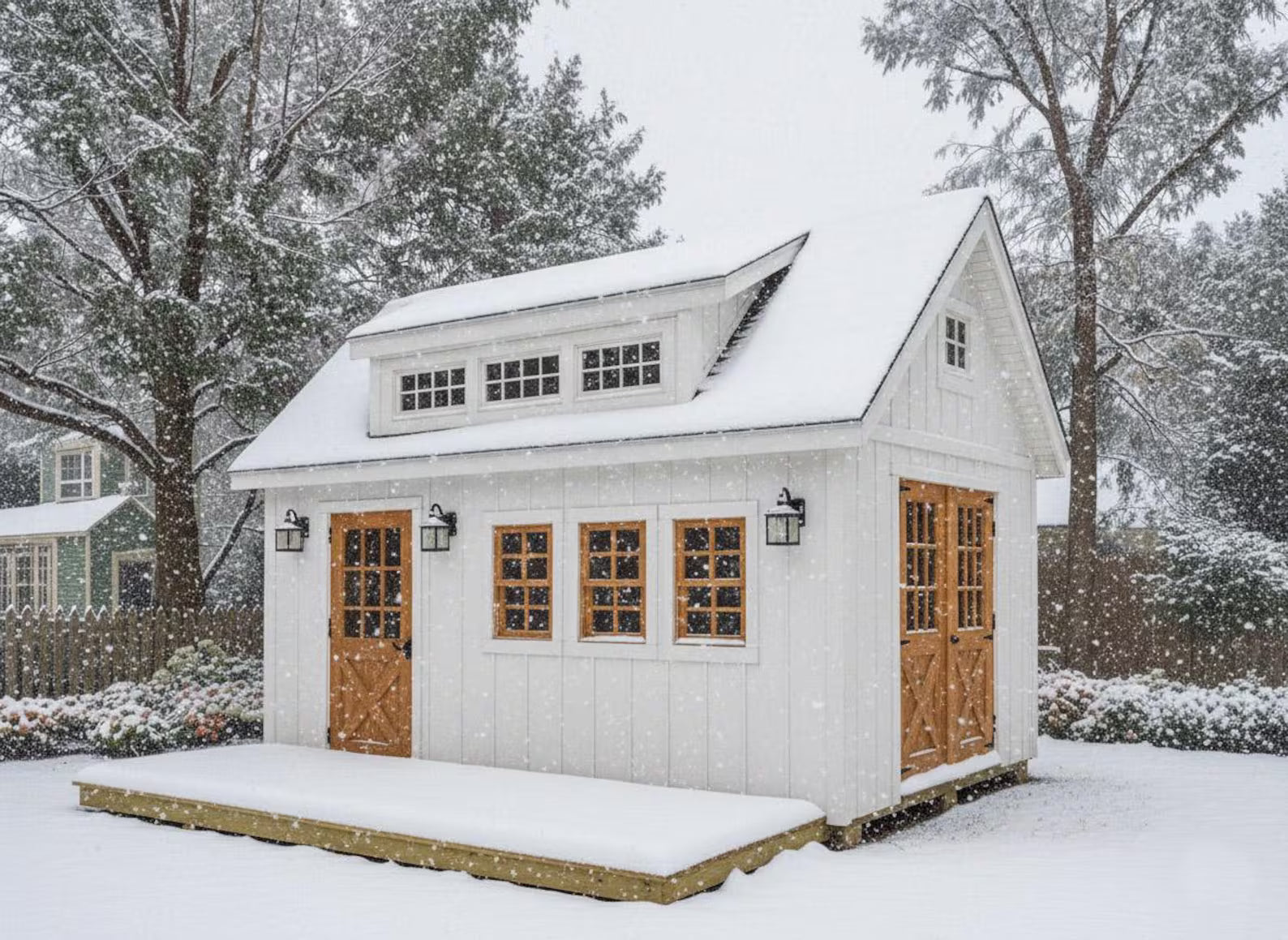

Smart Construction Details • 10” roof overhangs for added weather protection • Trim and finishing guides for a polished appearance • Engineered for real-world loads: 50 psf floor | 40 psf snow roof load
📘 What’s Included
✔ Complete materials list ✔ Step-by-step illustrated building guide ✔ Door, framing, roofing & siding instructions ✔ Load specs, trim details, and pro tips
⚡ Instant Download
Get your plans immediately after purchase! Go to Your Account → Purchases to download and start building today.
Build with confidence and precision — these plans are crafted for strength, durability, and lasting beauty.
